Kabuki 50 curtain drop system
Add dramatic movement with the fastest and most reliable Kabuki drop system on the market. A combination of click profiles, brakes and bearings.
Technical Data Sheet »
Manual Kabuki drop System »
ShowTex Rental Guidelines »
Contact us for a Quote »

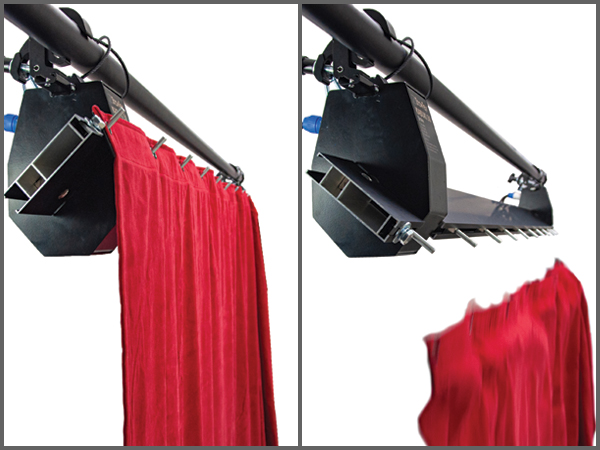

Kabuki Drop System
- Falls at exactly the right moment
- Unique design suspends curtains without relying on electricity
- At the push of a button only the drop is electrically activated, not the suspension
- Safety and reliability even in the event of a power failure
- An almost unlimited number of extensions can be fitted to the Modular Kabuki System by connecting brakes and bearings to the Kabuki click profiles
- Use any curtains by adjusting the sliding peg in the Kabuki profile to the distance between the grommets of the curtain webbing
Specifications:
- Height: 230 mm (350 mm + clamp)
- Length: 1 m – 6 m
- Attachment: 1 clamp & safety wire
- Voltage (brake): 230V
- Load capacity per brake: 30 kg
- Connection: Neutrik (R) Powercon (brake)
